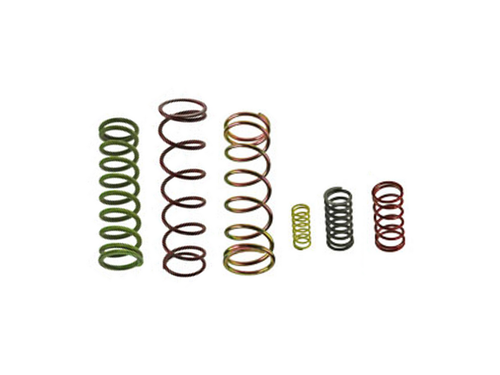

Stainless Steel Springs for 3/4" SRVs | 4469

Write a Review
SKU -
4469
$14.87
$14.87

Description

17-7 stainless-steel replacement spring for Conrader brass-body hard-seat safety relief valves used on compressed-air, gas and elevated-temperature pressure-vessel service, dimensioned to the Conrader hard-seat valve body as a like-for-like service-set part. Pressure settings outside the standard range can be ordered to suit specific service points; batch certification is available on request. Stocked in Australia by Ultramax Systems, supplied as a service part for technician test-bench set-pressure adjustment, with full recertification of the assembled valve supported in-house.

Features

  • 17-7 stainless-steel spring construction for consistent set-pressure over service life
  • Stocked in Australia for fast turnaround on shop-bench work
  • Service-replacement part used during recertification of Conrader SRH hard-seat valves
  • Supplied unset for technician set-pressure adjustment on the test bench
  • Recertification of the assembled valve supported in-house by Ultramax Systems

Applications

  • Re-rating a safety relief valve to a different set pressure
  • Servicing and recertification of safety relief valves
  • Maintenance of compressor and pneumatic system relief valves
  • General industrial and workshop valve servicing
  • Replacement spring for safety relief valves on compressed-air receivers and pressure vessels

Specifications

Width
6.000 (cm)
Height
1.500 (cm)
Depth
1.500 (cm)
Cap Material
ASTM B16 Brass
Spring Material
17-7 Stainless Steel
Piston Material
ASTM B16 Brass
Seal Material
Silicone (Standard) / Viton (on Request)
Seat Material
ASTM B16 Brass
Colour
Orange
Pressure (psi)
171 - 259
SCFM
679 - 1,003
Flow Rate (scfm)
679 - 1003
Notes
We can supply other pressure settings to order. All safety Valves can be recertified. Silicon Seal Max Temperature 120º C. Viton Seal Max Temperature 230º C
Pressure (kPa)
1179 - 1786
