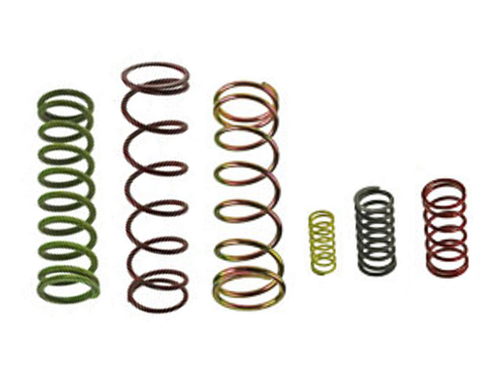

Stainless Steel Unset Springs for ½” Hard Seat SRVs | 4757

Write a Review
SKU -
4757
$15.60
$15.60

Description

Replacement stainless-steel spring for Conrader brass-body hard-seat safety relief valves used on compressed-air, gas and elevated-temperature pressure-vessel service — dimensioned to the Conrader hard-seat valve body and supplied unset for shop-bench adjustment. Custom pressure set-points can be supplied to order; the assembled valve can be recertified and supplied with a batch certificate by the Ultramax Systems team. Held in Australian stock as an unset service-replacement spring, with recertification of the assembled valve supported by the Ultramax Systems team.

Features

  • Dimensioned to the Conrader SRH brass hard-seat valve body — installs in the genuine housing without modification
  • 17-7 stainless-steel spring construction for consistent set-pressure over service life
  • Recertification of the assembled valve supported in-house by Ultramax Systems
  • Supplied unset for technician set-pressure adjustment on the test bench
  • Stocked in Australia for fast turnaround on shop-bench work

Applications

  • Maintenance of compressor and pneumatic system relief valves
  • General industrial and workshop valve servicing
  • Replacement spring for safety relief valves on compressed-air receivers and pressure vessels
  • Re-rating a safety relief valve to a different set pressure
  • Servicing and recertification of safety relief valves

Specifications

Width
4.500 (cm)
Height
1.500 (cm)
Depth
1.500 (cm)
Colour
Blue
Pressure (psi)
50 - 70
SCFM
116 - 153
Flow Rate (scfm)
116 - 153
Spring Material
Stainless Steel
Pressure (kPa)
345 - 483
Notes
We can supply other pressure settings to order. All safety Valves can be recertified. Silicon Seal Max Temperature 120º C. Viton Seal Max Temperature 230º C
