Description

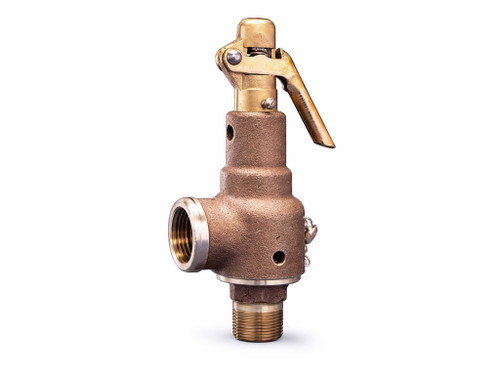

This genuine Kunkle 6010 model side-venting safety relief valve with a H orifice is supplied by Ultramax Systems for overpressure protection in compressed air and gas service. Factory set to 300 psi (2068 kPa / 20.7 bar), it vents excess pressure and reseats once normal operating pressure returns. The rated flow is 4788 scfm. Operating temperature range -51° to 208°C. Held in Australian stock by Ultramax Systems, with certificates and recertification available on request.
Features
- Spring-loaded with automatic reseating
- Held in Australian stock by Ultramax Systems
- Genuine Kunkle 6010 model valve
- H orifice
- Factory set to 300 psi (2068 kPa)
- Side-venting design for air and gas service
Applications
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
