Description
Ultramax Systems supplies the ATS0055X as a direct replacement within the ATS G 2024 range. The element is a Grade X general purpose coalescing element, and removes oil aerosol, water and solid particulate from the air stream, rated at 1 µm. The element belongs as the first coalescing stage, ahead of a dryer or a carbon tower. Clearing this load first protects the dryer or carbon stage that follows. The element is built to the original dimensions and needs no modification to the housing. G0055M housings accept this element. It is held in Australian stock and priced to work against the cost of going direct to the OEM.
This replacement filter element from Ultramax is a high-quality, ATS-compatible alternative. Designed as an alternative to OEM part numbers 0055EM. It is engineered to suit housing models G0055M. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference
- G0055M
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| X | ATS0055XYou are here | General Purpose Coalescer | 1 µm |
| A | ATS0055A | Activated Carbon | 0.01 µm |

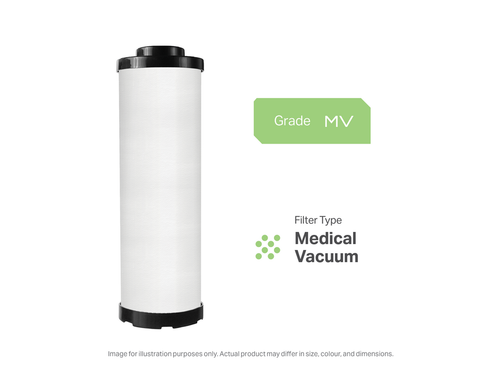

| MV | ATS0055MV | Medical Vacuum | — |
| P | ATS0055P | General Purpose Coalescer | 3 µm |
| Y | ATS0055Y | Oil Removal Coalescer | 0.01 µm |
Features
- Grade X media rated at 1 µm
- Removes oil aerosol, water and solid particulate from the air stream
- Dimensional match to the ATS G 2024 original, fits the existing housing without modification
- Suits G0055M housings
- Held in Australian stock, not brought in to order
Applications
- Compressed air ahead of a refrigerated or adsorption dryer
- Pneumatic tooling and cylinder control
- Ring main protection
- Air feeding automated production equipment
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
