Description

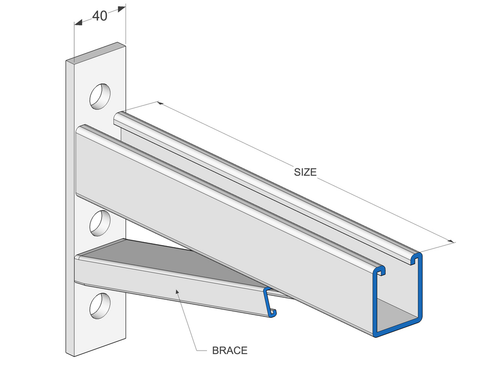

The Braced Cantilever Bracket HDG, sized at 470, is an essential component of an industrial strut system designed to provide a robust and modular metal framework for anchoring brackets, fittings, and threaded fasteners, thereby supporting various services and equipment. This innovative bracket utilises slotted channel and matched fitting engagement, ensuring seamless compatibility with support channels, threaded rods, brackets, beam clamps, channel nuts, and cable management components. The design facilitates rapid framework assembly and allows for repeatable installation, making it an ideal choice for projects requiring strong load support and adaptability to changing site requirements. With its hot-dip galvanised finish, the Braced Cantilever Bracket HDG not only enhances structural integrity but also offers superior corrosion resistance, ensuring longevity and reliability in demanding industrial environments. This component is engineered to meet the rigorous standards of modern construction, providing a versatile solution that streamlines installation processes while maintaining the flexibility to accommodate future modifications.
Features
- Slotted channel design for versatile mounting options and easy adjustments.
- Available in hot-dip galvanised or pre-galvanised finishes for enhanced corrosion resistance.
- High load-bearing capacity suitable for demanding industrial applications.
- Modular fitment allows for quick assembly and reconfiguration on-site.
- Compatible with standard strut nuts and brackets for seamless integration.
- Corrosion-resistant finishes ensure longevity in harsh environments.
- Repeatable on-site assembly facilitates efficient installation and maintenance.
- Constructed from durable steel for superior strength and reliability.
Applications
- Robust support for pipe support framing in industrial settings, ensuring stability and durability under heavy loads.
- Efficient cable tray mounting solutions, facilitating organised and secure routing of electrical cables in commercial environments.
- Ideal for HVAC ducting installations, providing reliable anchoring points for ductwork in both new builds and retrofits.
- Designed for mechanical services risers, offering structural integrity for vertical service installations in high-rise buildings.
- Supports electrical infrastructure, ensuring safe and compliant mounting of conduits and panels in industrial applications.
- Perfect for mine site workshops, delivering heavy-duty support for tools and equipment in rugged environments.
- Optimised for plant rooms, providing versatile framing solutions for mechanical and electrical systems in confined spaces.
- Facilitates structural framing in various industrial applications, enhancing overall project efficiency and safety.
