Description
The CQ775X-HT covers the Conquest HT Flanged Series 2 range in the Ultramax Systems alternative line. The element is a Grade X general purpose coalescing element, and removes oil aerosol, water and solid particulate from the air stream, rated at 1 µm. In service it sits as the first coalescing stage, ahead of a dryer or a carbon tower. Removing the bulk of the liquid here is what lets the downstream element do its job. The element is built to the original dimensions and needs no modification to the housing. F0775U-HT housings accept this element. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, Conquest HT Flanged Series 1-compatible alternative. Designed as an alternative to OEM part numbers EA775U-HT. It is engineered to suit housing models GE775U-E4-HT | F0775U-HT. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| Conquest HT Flanged Series 1 | EA775U-HT |
|---|
- F0775U-HT
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| X | CQ775X-HTYou are here | General Purpose Coalescer | 1 µm |

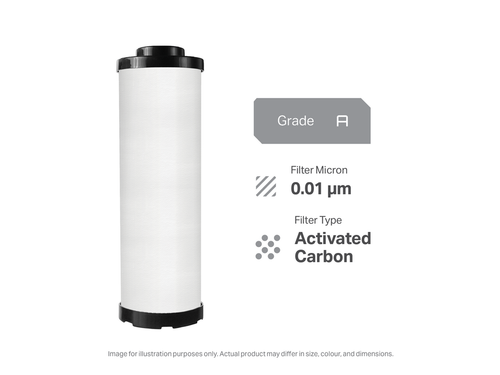

| A | CQ775A-HT | Activated Carbon | 0.01 µm |
| P | CQ775P-HT | General Purpose Coalescer | 5 µm |
| Y | CQ775Y-HT | Oil Removal Coalescer | 0.01 µm |
Features
- Grade X media rated at 1 µm
- Removes oil aerosol, water and solid particulate from the air stream
- Dimensional match to the Conquest HT Flanged Series 2 original, fits the existing housing without modification
- Suits F0775U-HT housings
- Held in Australian stock, not brought in to order
Applications
- Compressed air ahead of a refrigerated or adsorption dryer
- Pneumatic tooling and cylinder control
- Pre-filtration ahead of an activated carbon stage
- Air feeding automated production equipment
