Description
Within the Domnick Hunter Oil-X P post '95 range, the DH009PF is the Ultramax Systems replacement element. It is a Grade PF dust element and catches desiccant fines and solid carryover, rated at 25 µm. In service it sits on the outlet of an adsorption dryer. Desiccant carryover stopped here never reaches the instruments downstream. The element is built to the original dimensions and needs no modification to the housing. F0009 housings accept this element. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, Domnick Hunter Oil-X plus After '95-compatible alternative. Designed as an alternative to OEM part numbers K009PF | K009PF-B | E009PF | E009PF-B | DH0X009A0P25. It is engineered to suit housing models F0009 | FG0009G | FG-0009G. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| Domnick Hunter Oil-X plus After '95 | K009PFK009PF-BE009PFE009PF-BDH0X009A0P25ODH 009 PF/P1010100103301 |
|---|
- F0009
- FG0009G
- FG-0009G
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| PF | DH009PFYou are here | General Purpose Dust | 25 µm |
| A | DH009A | Activated Carbon | 0.01 µm |
| AG | DH009GC | 0.01 µm | |
| HC | DH009HC | Hopcalite | — |
| MS | DH009MS | Molecular Sieve | — |

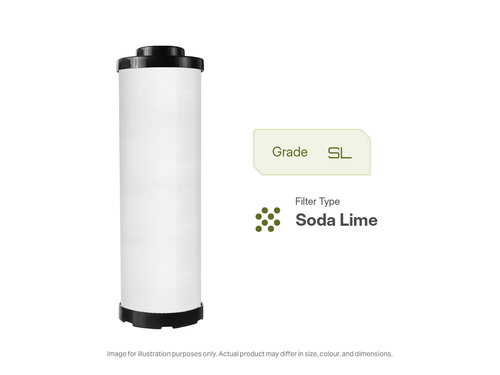

| SL | DH009SL | Soda Lime | — |
| X | DH009X | General Purpose Coalescer | 1 µm |
| X | DH009X-HT | General Purpose Coalescer | 1 µm |
| Y | DH009Y | Oil Removal Coalescer | 0.01 µm |
| Y | DH009Y-HT | Oil Removal Coalescer | 0.01 µm |
Features
- Grade PF media rated at 25 µm
- Catches desiccant fines and solid carryover
- Dimensional match to the Domnick Hunter Oil-X P post '95 original, fits the existing housing without modification
- Suits F0009 and 2 further housing models
- Held in Australian stock, not brought in to order
Applications
- Outlet of an adsorption dryer
- Downstream of desiccant beds
- General plant air
- Air feeding control circuits
