Description
The DH145HC covers the Domnick Hunter Oil-X P post '95 range in the Ultramax Systems alternative line. As a Grade HC hopcalite element it converts carbon monoxide to carbon dioxide across a catalytic bed. The element belongs in a breathing air train, downstream of the coalescing and carbon stages. Carbon monoxide is the one contaminant a breathing air train cannot afford to pass. The element is built to the original dimensions and needs no modification to the housing. It is the element used in HC0080 housings. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, Domnick Hunter Oil-X plus After '95-compatible alternative. Designed as an alternative to OEM part numbers K145HC | E145HC. It is engineered to suit housing models HC0080 | HC-0080G | HC-0125G | HC-0145G | HC0125G. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| Domnick Hunter Oil-X plus After '95 | K145HCE145HC |
|---|
- HC0080
- HC-0080G
- HC-0125G
- HC-0145G
- HC0125G
- HC0145G
- HC0080G
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| HC | DH145HCYou are here | Hopcalite | — |
| A | DH145A | Activated Carbon | 0.01 µm |
| AG | DH145GC | 0.01 µm | |

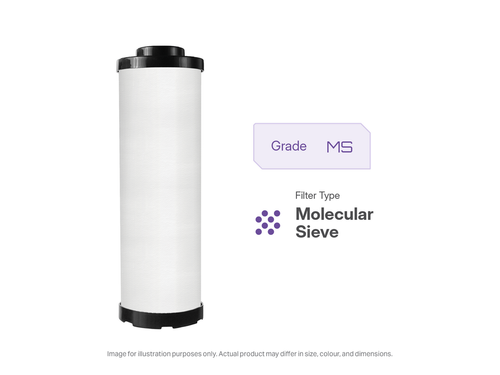

| MS | DH145MS | Molecular Sieve | — |
| PF | DH145PF | General Purpose Dust | 25 µm |
| SL | DH145SL | Soda Lime | — |
| X | DH145X | General Purpose Coalescer | 1 µm |
| X | DH145X-HT | General Purpose Coalescer | 1 µm |
| Y | DH145Y | Oil Removal Coalescer | 0.01 µm |
| Y | DH145Y-HT | Oil Removal Coalescer | 0.01 µm |
Features
- Grade HC hopcalite element
- Converts carbon monoxide to carbon dioxide across a catalytic bed
- Dimensional match to the Domnick Hunter Oil-X P post '95 original, fits the existing housing without modification
- Suits HC0080 and 4 further housing models
- Held in Australian stock, not brought in to order
Applications
- Breathing air systems
- Compressed air for respiratory equipment
- Abrasive blasting operations
- Industrial safety installations
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
