Description

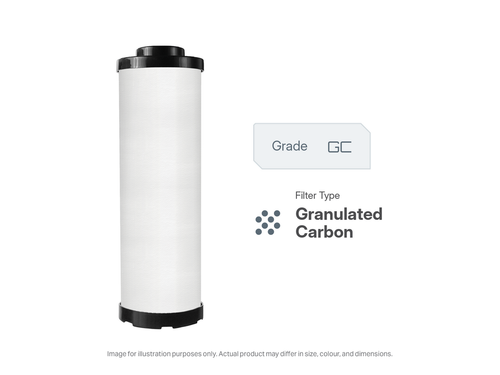

The DH330GC is the Ultramax Systems replacement element for the Domnick Hunter Oil-X P post '95 range. As a Grade GC granulated activated carbon element it adsorbs oil vapour and odour through a packed carbon bed, rated at 0.01 µm. It sits as a final polishing stage. Contamination stopped here does not reach the equipment behind it. Dimensions follow the original, so it installs into the existing housing without modification. Housings in the AC-0330G family take this element. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, Domnick Hunter Oil-X plus After '95-compatible alternative. Designed as an alternative to OEM part numbers K330AC | K330AC-B | E330AC | E330AC-B. It is engineered to suit housing models AC-0330G | AC-1000G | AC-0330F | AC-1000F | AC-1300F. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| Domnick Hunter Oil-X plus After '95 | K330ACK330AC-BE330ACE330AC-B |
|---|
- AC-0330G
- AC-1000G
- AC-0330F
- AC-1000F
- AC-1300F
- AC-1950F
- AC-3250F
- AC-5200F
- AC-7800F
- AC1000G
- AC0330F
- AC1000F
- AC1300F
- AC1950F
- AC3250F
- AC5200F
- AC7800F
- AC0330G
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| GC | DH330GCYou are here | Granulated Activated Carbon | 0.01 µm |
| A | DH330A | Activated Carbon | 0.01 µm |
| HC | DH330HC | Hopcalite | — |

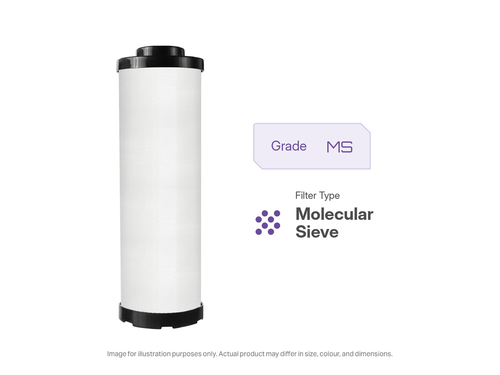

| MS | DH330MS | Molecular Sieve | — |
| PF | DH330PF | General Purpose Dust | 25 µm |
| SL | DH330SL | Soda Lime | — |
| X | DH330X | General Purpose Coalescer | 1 µm |
| X | DH330X-HT | General Purpose Coalescer | 1 µm |
| Y | DH330Y | Oil Removal Coalescer | 0.01 µm |
| Y | DH330Y-HT | Oil Removal Coalescer | 0.01 µm |
Features
- Grade GC media rated at 0.01 µm
- Adsorbs oil vapour and odour through a packed carbon bed
- Dimensional match to the Domnick Hunter Oil-X P post '95 original, fits the existing housing without modification
- Suits AC-0330G and 4 further housing models
- Held in Australian stock, not brought in to order
Applications
- Food and beverage processing
- Packaging lines
- Laboratory air
- Odour sensitive processes
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
