Description
Within the Domnick HunOIL-X IP50 ADVANTAGE range, the DHIP5040MS is the Ultramax Systems replacement element. It is a Grade MS molecular sieve element and adsorbs residual moisture to a low dew point. It sits in a breathing air or instrument air train. A low dew point at this point keeps the stages behind it working as intended. Dimensions follow the original, so it installs into the existing housing without modification. It is the element used in IP50 030C MSX housings. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, Parker OIL-X IP50 Advantage 50 Bar-compatible alternative. It is engineered to suit housing models IP50 030C MSX | IP50030CMSX. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
- IP50 030C MSX
- IP50030CMSX
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| MS | DHIP5040MSYou are here | Molecular Sieve | — |
| A | DHIP5040A | Activated Carbon | 0.01 µm |
| GC | DHIP5040GC | Granulated Activated Carbon | — |

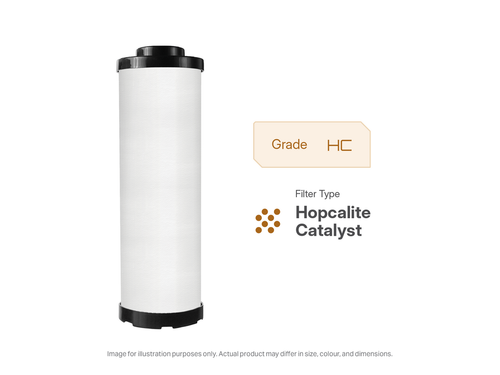

| HC | DHIP5040HC | Hopcalite | — |
| SL | DHIP5040SL | Soda Lime | — |
| X | DHIP5040X | General Purpose Coalescer | 1 µm |
| Y | DHIP5040Y | Oil Removal Coalescer | 0.01 µm |
Features
- Grade MS molecular sieve element
- Adsorbs residual moisture to a low dew point
- Dimensional match to the Domnick HunOIL-X IP50 ADVANTAGE original, fits the existing housing without modification
- Suits IP50 030C MSX and 1 further housing models
- Held in Australian stock, not brought in to order
Applications
- Breathing air systems
- Instrument air
- Applications requiring a low dew point
- Analytical instrumentation
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
