Description

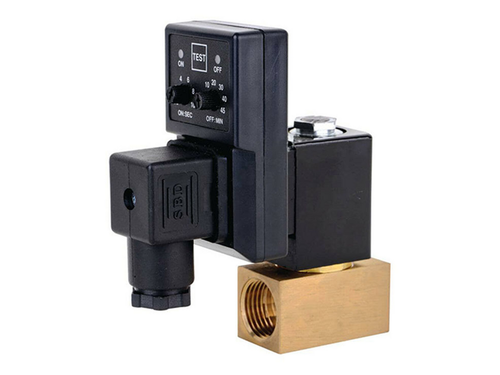

An electronically timed solenoid condensate drain valve in ⅛ NPT, supplied by Ultramax Systems for automatic discharge of accumulated condensate from compressed-air systems. It uses a brass valve body with a 2 mm discharge orifice, with a 110V AC solenoid actuated by an adjustable digital timer and a DIN 43650 plug connection. The timer sets the interval between discharges and the discharge duration, so condensate is expelled on a controlled cycle without manual intervention. Stocked in Australia by Ultramax Systems, with technical support available on request.
Features
- Brass valve body
- ⅛ NPT port with 2 mm discharge orifice
- 110V AC solenoid operation
- Adjustable digital timer sets discharge interval and duration
- DIN 43650 plug electrical connection
Applications
- Air receivers and compressed-air pressure vessels
- Refrigerated and desiccant compressed-air dryers
- Compressed-air line filters and water separators
- After-coolers on reciprocating and rotary compressors
- Workshop and industrial compressed-air installations
