Description

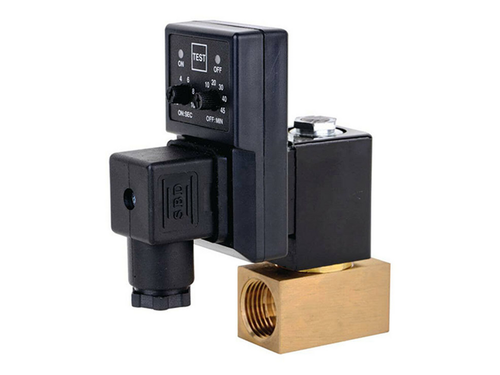

An electronically timed solenoid condensate drain valve in 3/8" BSP, supplied by Ultramax Systems for automatic discharge of accumulated condensate from compressed-air systems. It uses a brass valve body with a 3.2 mm discharge orifice, rated to 16 bar maximum working pressure, with a 415V solenoid actuated by an adjustable analogue timer and a DIN 43650 plug connection. The timer sets the interval between discharges and the discharge duration, so condensate is expelled on a controlled cycle without manual intervention. Stocked in Australia by Ultramax Systems, with technical support available on request.
Features
- Brass valve body
- 3/8" BSP port with 3.2 mm discharge orifice
- 415V solenoid operation
- Adjustable analogue timer sets discharge interval and duration
- DIN 43650 plug electrical connection
- Rated to 16 bar maximum working pressure
Applications
- Air receivers and compressed-air pressure vessels
- Refrigerated and desiccant compressed-air dryers
- Compressed-air line filters and water separators
- After-coolers on reciprocating and rotary compressors
- Workshop and industrial compressed-air installations
