Description

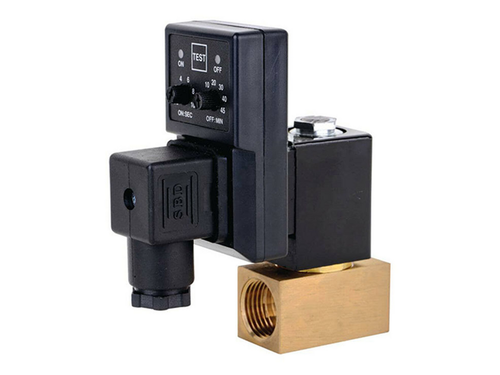

This Ultramax Systems drain valve timer controls the discharge cycle of a solenoid condensate drain, with an adjustable ON time of roughly 0.5 to 10 seconds and an OFF interval of about 0.5 to 45 minutes. Analogue and digital versions are available, along with a low-voltage digital option, accepting a wide supply range. The timer can be used to retrofit timed control to a manual solenoid drain or to replace a faulty controller without changing the valve.
Features
- Adjustable ON time of around 0.5 to 10 seconds
- Adjustable OFF interval of around 0.5 to 45 minutes
- Analogue and digital versions
- Wide supply voltage range
- Low-voltage digital option available
- Retrofit or replacement controller
Applications
- Retrofitting timed control to a drain
- Replacing a faulty drain controller
- Receiver, filter and dryer drains
- Timing multiple drain points
- Maintenance spares
