Breathing Air Filters - Hopcalite (H2) 1 1/2", 600 / 353 | G600HC

Write a Review
SKU -
G600HC
$1,598.00
$1,598.00

Description

Breathing air systems are essential for delivering safe, filtered air to personnel in various industrial settings, ensuring respiratory protection in hazardous environments. These systems function by effectively removing contaminants, controlling air pressure, and maintaining a consistent air supply, which is crucial for applications such as confined space work, maintenance shutdowns, industrial cleaning operations, and emergency response activities. The integration of Hopcalite filters enhances the system's ability to purify air by removing harmful gases, thereby improving worker safety and ensuring reliable air quality. With a focus on durability and compliance with occupational safety requirements, these breathing air systems are vital for safeguarding personnel and promoting a secure working environment.

Features

  • Advanced filtration technology ensures removal of harmful contaminants from breathing air.
  • Integrated air quality control systems monitor and maintain optimal air purity levels.
  • Robust pressure regulation mechanisms provide consistent air supply under varying conditions.
  • Designed for high reliability, ensuring uninterrupted operation in critical environments.
  • Enhanced safety performance with fail-safe features to protect users in hazardous situations.
  • Constructed from durable materials to withstand harsh industrial conditions and extended use.
  • Suitable for a wide range of applications, including confined spaces and high-risk areas.
  • Easy maintenance and serviceability to minimise downtime and operational disruptions.

Applications

  • Confined space entry for maintenance and inspection in tanks, silos, and pipelines.
  • Tank cleaning operations requiring safe air supply to protect workers from toxic vapours.
  • Hazardous maintenance work in chemical plants where air quality is compromised.
  • Emergency rescue activities in environments with potential for low oxygen levels.
  • Industrial shutdown procedures necessitating clean air for workers in enclosed areas.
  • Firefighting operations where breathable air is critical for personnel safety.
  • Mining operations involving underground work where air quality must be monitored.
  • Petrochemical processing where workers are exposed to hazardous gases and vapours.

Specifications

Width
19.000 (cm)
Height
9.000 (cm)
Depth
14.500 (cm)
Body Material
Diecast Aluminium
Drain Port Size (”)
⅛”

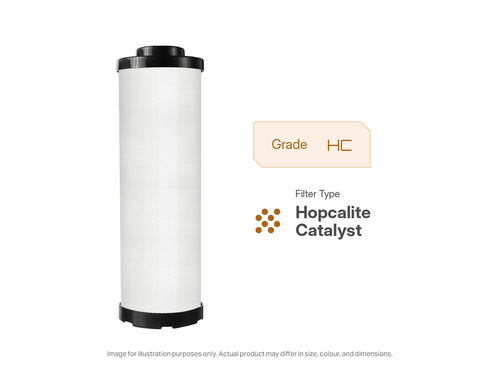

Element Model
M600HC
Flow Rate (scfm)
300
Flow Rate (m3/h)
510
Initial Pressure Loss (mbar)
730
Material (Body)
Diecast Aluminium
Max. Operating Temperature
40
Maximum Working Pressure (bar)
20
Max Working Pressure (barg)
20
Media
Hopcalite + Nanofibre Borosilicate
Operating Temperature
2 ˚C to 40 ˚C
Particle Removal (Micron)
1 µm
Filter Micron Rating (μm)
1
O-Rings Material
Viton
Grade
HC
Port Size (”) 1
1½”
