Description
Within the JD Filters range, the JD035X is the Ultramax Systems replacement element. It is a Grade X general purpose coalescing element and removes oil aerosol, water and solid particulate from the air stream, rated at 1 µm. In service it sits as the first coalescing stage, ahead of a dryer or a carbon tower. Clearing this load first protects the dryer or carbon stage that follows. The element is built to the original dimensions and needs no modification to the housing. Housings in the JD-035P family take this element. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, JD-compatible alternative. Designed as an alternative to OEM part numbers JD035P. It is engineered to suit housing models JD-035P. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| JD | JD035P |
|---|
- JD-035P
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| X | JD035XYou are here | General Purpose Coalescer | 1 µm |
| P | JD035 | General Purpose Coalescer | 3 µm |

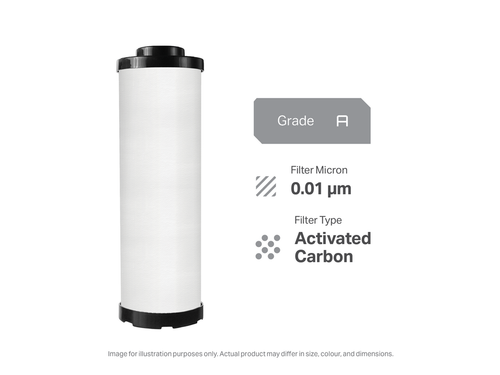

| A | JD035A | Activated Carbon | 0.01 µm |
| Y | JD035Y | Oil Removal Coalescer | 0.01 µm |
Features
- Grade X media rated at 1 µm
- Removes oil aerosol, water and solid particulate from the air stream
- Dimensional match to the JD Filters original, fits the existing housing without modification
- Suits JD-035P housings
- Held in Australian stock, not brought in to order
Applications
- Compressed air ahead of a refrigerated or adsorption dryer
- Pneumatic tooling and cylinder control
- Compressor room outlet filtration
- Spray and blow off applications
