Description

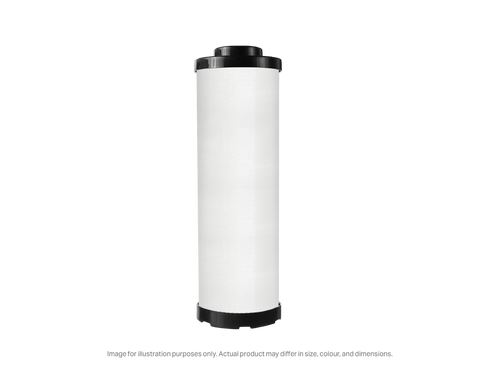

The MTA14050X covers the MTA Filters range in the Ultramax Systems alternative line. It is a Grade X general purpose coalescing element and removes oil aerosol, water and solid particulate from the air stream, rated at 1 µm. In service it sits as the first coalescing stage, ahead of a dryer or a carbon tower. Taking that load out early keeps the finer stage behind it working to its rated life. The element is built to the original dimensions and needs no modification to the housing. It is the element used in HEF010M housings. Australian stock holding keeps lead times short, at a working budget price relative to the OEM part.
This replacement filter element from Ultramax is a high-quality, MTA H Series-compatible alternative. Designed as an alternative to OEM part numbers 1617719211 1617-7192-11 2258290008 2258-2900-08 2200003332 2200-0033-32 EMTA20U OMTA 20 MBM/M. It is engineered to suit housing models HEF010M FMM020 FMM 020 FM O20. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference
- HEF010M
- FMM020
- FMM 020
- FM O20
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| X | MTA14050XYou are here | General Purpose Coalescer | 1 µm |
| A | MTA14050A | Activated Carbon | 0.01 µm |
| P | MTA14050P | General Purpose Coalescer | 3 µm |
| Y | MTA14050Y | Oil Removal Coalescer | 0.01 µm |
Features
- Grade X media rated at 1 µm
- Removes oil aerosol, water and solid particulate from the air stream
- Dimensional match to the MTA Filters original, fits the existing housing without modification
- Suits HEF010M and 3 further housing models
- Held in Australian stock, not brought in to order
Applications
- Compressed air ahead of a refrigerated or adsorption dryer
- Pneumatic tooling and cylinder control
- Ring main protection
- General workshop and plant air
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
