Description

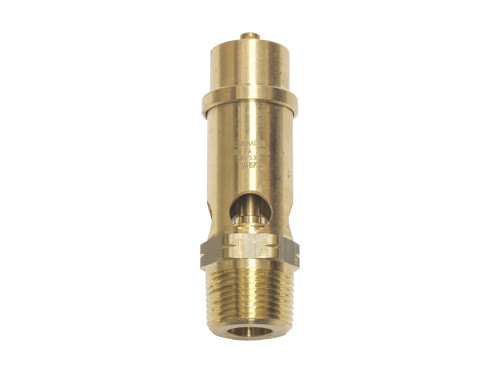

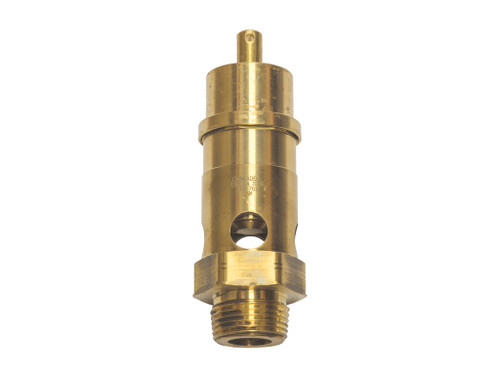

The Conrader SRH 580 is a hard seat safety relief valve in 1" BSP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 125 psi (861 kPa / 8.6 bar), rated flow of 506 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- AS-coded and ASME-coded variants available across the range
- Stainless-steel spring for consistent set-pressure across the service interval
- Brass body construction with metal-to-metal hard seat for demanding service
- Factory set, tested and tagged to the marked pressure setting
- Metric and BSP threaded body configurations for compressor and pressure-vessel mounting
Applications
- Heated pressure vessels and process tanks within rated temperature
- Intercoolers and aftercoolers on compressed-air systems
- Industrial process plants on compressed-air, gas and steam duty
- Pressure vessels operating at elevated temperatures
