Description

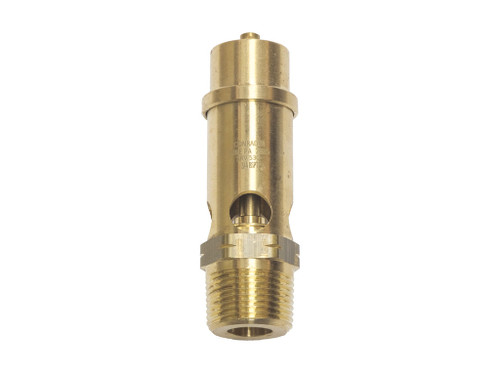

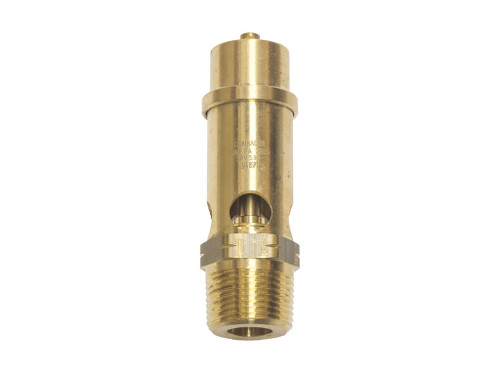

The Conrader SRH 580 is a hard seat safety relief valve in 3/4" BSP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 125 psi (861 kPa / 8.6 bar), rated flow of 506 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Robust internal trim for repeated pressure-relief cycles without sealing degradation
- Stainless-steel spring for consistent set-pressure across the service interval
- AS-coded and ASME-coded variants available across the range
- Metric and BSP threaded body configurations for compressor and pressure-vessel mounting
- Brass body construction with metal-to-metal hard seat for demanding service
Applications
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
