Description

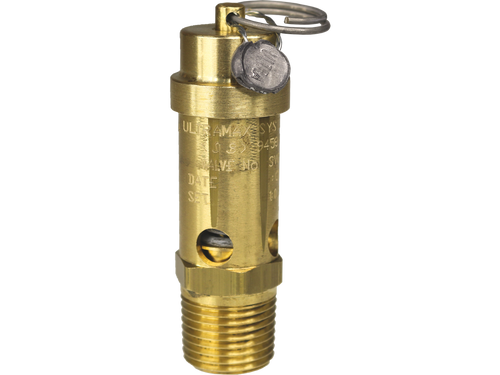

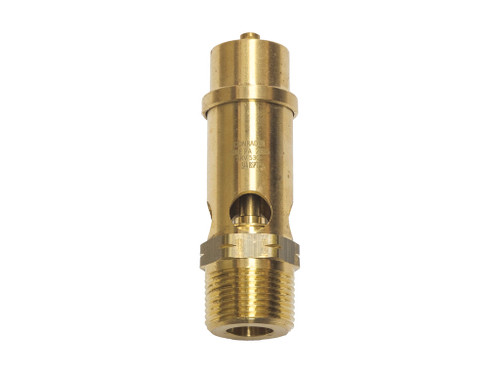

This Conrader hard seat safety relief valve in 3/4" BSPP provides dependable overpressure protection on compressed-air systems, receivers and pressure vessels — supplied by Ultramax Systems for Australian industrial installations. Factory-set to 181 psi (1250 kPa / 12.5 bar), rated flow of 709 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Supplied from Australian stock with batch certification on request and full recertification supported by the Ultramax Systems technical team.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Brass body construction with metal-to-metal hard seat for demanding service
- Metric and BSP threaded body configurations for compressor and pressure-vessel mounting
- AS-coded and ASME-coded variants available across the range
- Suitable for compressed air, gas and steam service within rated temperature limits
Applications
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
