Description

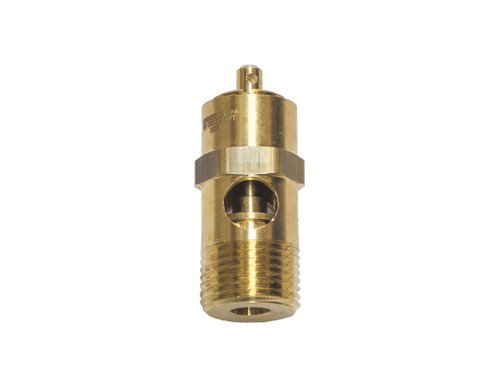

This Conrader hard seat safety relief valve in 3/8" BSPP provides dependable overpressure protection on compressed-air systems, receivers and pressure vessels — supplied by Ultramax Systems for Australian industrial installations. Factory-set to 160 psi (1103 kPa / 11.0 bar), rated flow of 137 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Supplied from Australian stock with batch certification on request and full recertification supported by the Ultramax Systems technical team.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, gas and steam service within rated temperature limits
- Metric and BSP threaded body configurations for compressor and pressure-vessel mounting
- Factory set, tested and tagged to the marked pressure setting
- AS-coded and ASME-coded variants available across the range
Applications
- Reciprocating and rotary compressors in demanding service
- Intercoolers and aftercoolers on compressed-air systems
- Industrial process plants on compressed-air, gas and steam duty
- Heated pressure vessels and process tanks within rated temperature
