Description

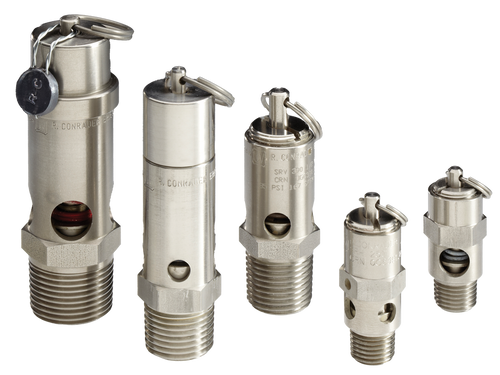

The Conrader SRV is a hard seat safety relief valve in 1/4" NPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 80 psi (551 kPa / 5.5 bar), rated flow of 76 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Brass body construction with metal-to-metal hard seat for demanding service
- Robust internal trim for repeated pressure-relief cycles without sealing degradation
- Suitable for compressed air, gas and steam service within rated temperature limits
- Factory set, tested and tagged to the marked pressure setting
- Stainless-steel spring for consistent set-pressure across the service interval
Applications
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
