Description

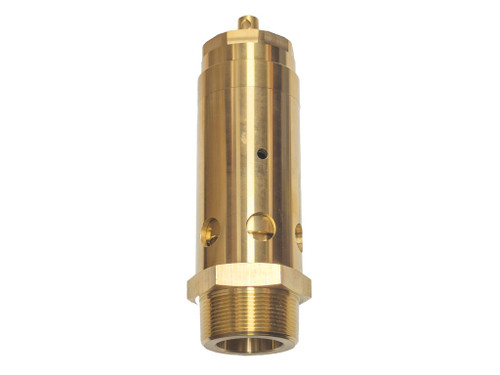

Conrader soft seat safety relief valves in 1-1/2" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/2" NPT configuration. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 2384 scfm, with an astm b16 brass seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Brass body construction for corrosion resistance in compressed-air and gas service
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Suitable for compressed air, inert gas and non-aggressive service media
Applications
- Air compressor receivers and air-line pressure vessels
- Compressed-air distribution networks and pressure regulators
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Pressure vessels containing non-hazardous compressed gases
- Pneumatic equipment, air tools and workshop installations
