Description

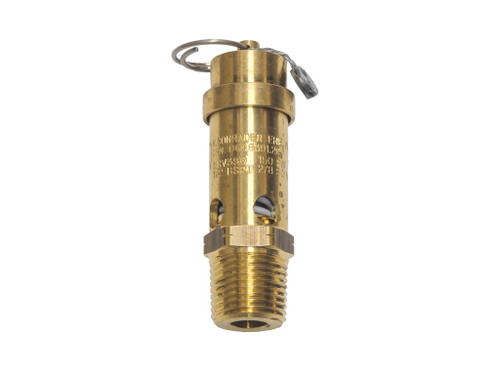

Conrader soft seat safety relief valves in 1/2" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1/2" NPT configuration. Factory-set to 175 psi (1206 kPa / 12.1 bar), rated flow of 321 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Brass body construction for corrosion resistance in compressed-air and gas service
- Factory set, tested and tagged to the marked pressure setting
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Stainless-steel spring for consistent set-pressure across the service interval
Applications
- Pressure vessels containing non-hazardous compressed gases
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Air compressor receivers and air-line pressure vessels
- Compressed-air distribution networks and pressure regulators
- Bypass relief on regulated air and gas circuits
