Description

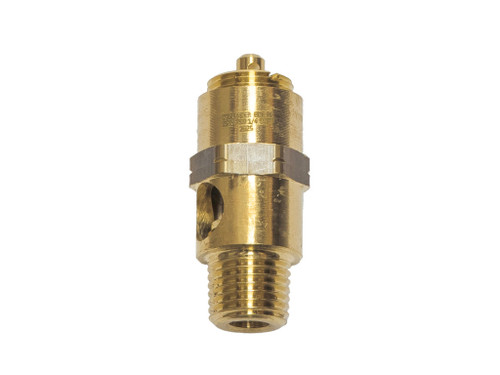

Conrader soft seat safety relief valves in 1/4" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1/4" NPT configuration. Factory-set to 160 psi (1103 kPa / 11.0 bar), rated flow of 141 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Factory set, tested and tagged to the marked pressure setting
- Brass body construction for corrosion resistance in compressed-air and gas service
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- Compressed-air distribution networks and pressure regulators
- Pneumatic equipment, air tools and workshop installations
- Air compressor receivers and air-line pressure vessels
- Bypass relief on regulated air and gas circuits
- Intercoolers and aftercoolers on reciprocating and rotary compressors
