Description

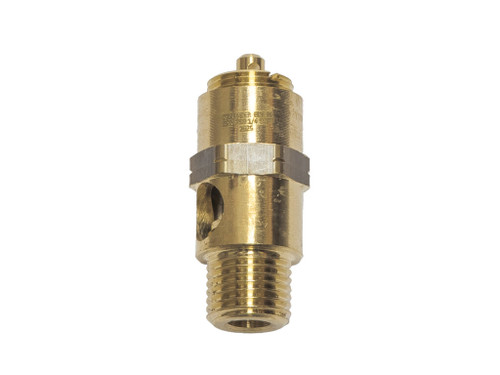

Conrader soft seat safety relief valves in 1/8" BSPP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1/8" BSPP configuration. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 124 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Compact body footprint for mounting on small receivers and pressure vessels
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Stainless-steel spring for consistent set-pressure across the service interval
- Factory set, tested and tagged to the marked pressure setting
Applications
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
