Description

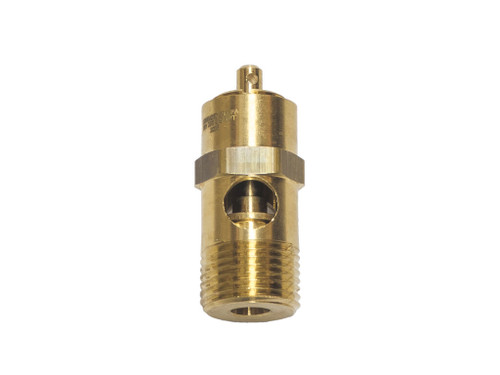

The Conrader 1/8" BSPP soft seat safety relief valve (SRV 250) is supplied by Ultramax Systems for overpressure protection on compressed air receivers, pressure vessels and gas installations. The brass body gives reliable sealing and corrosion resistance, and the valve is covering an adjustable set range of 25 to 450 psi (172 to 3103 kPa) and ASME coded, lifting to vent excess pressure and reseating once normal operating pressure returns. The rated flow is 31 - 377 scfm. Operating temperature range -53°C to 120°C. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Brass body with soft seat for reliable sealing
- BSPP threaded connection for direct fit to receivers
- Spring-loaded with automatic reseating once pressure returns
- Suitable for compressed air, inert gas and non-aggressive media
- ASME coded for pressure-vessel and receiver duty
- Rated flow 31 - 377 scfm
Applications
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
