Description

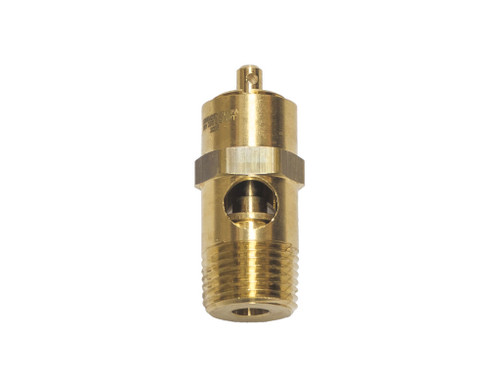

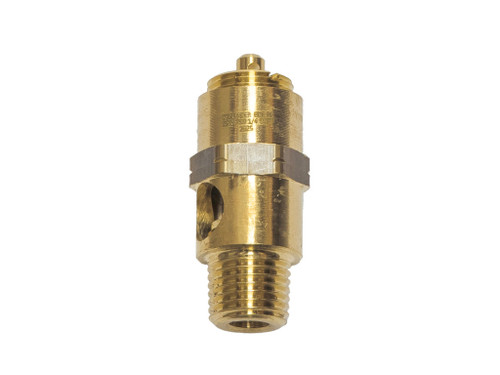

Supplied by Ultramax Systems, the Conrader 1/8" BSPT soft seat safety relief valve (SRV 250) protects compressed air and gas systems against overpressure. Built with a brass body for corrosion resistance, it is covering an adjustable set range of 25 to 450 psi (172 to 3103 kPa) and ASME coded and reseats automatically once pressure returns to the normal operating range. The rated flow is 31 - 377 scfm. Operating temperature range -53°C to 120°C. Held in Australian stock by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Rated flow 31 - 377 scfm
- Brass body with soft seat for reliable sealing
- BSPT threaded connection for direct fit to receivers
- Spring-loaded with automatic reseating once pressure returns
- Suitable for compressed air, inert gas and non-aggressive media
- ASME coded for pressure-vessel and receiver duty
Applications
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
