Description

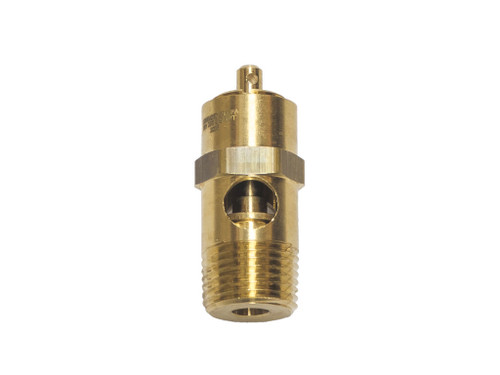

The Conrader SRV 250 is a soft seat safety relief valve in 3/8" NPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 150 psi (1034 kPa / 10.3 bar), rated flow of 132 scfm, with a stainless steel seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Suitable for compressed air, inert gas and non-aggressive service media
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Brass body construction for corrosion resistance in compressed-air and gas service
- Stainless-steel spring for consistent set-pressure across the service interval
Applications
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
- Bypass relief on regulated air and gas circuits
- Air compressor receivers and air-line pressure vessels
- Industrial nitrogen, CO2 and inert-gas systems
