Description

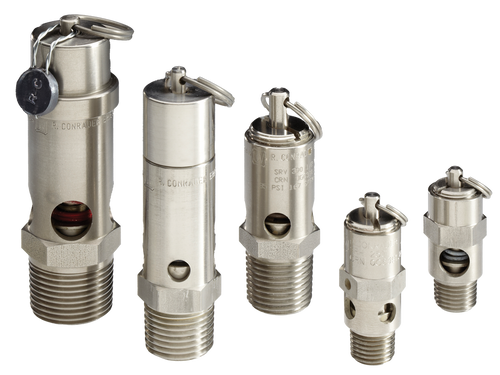

Conrader soft seat safety relief valves in 1-1/2" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/2" BSP configuration. Factory-set to 150 psi (1034 kPa / 10.3 bar), rated flow of 2498 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Suitable for compressed air, inert gas and non-aggressive service media
- Brass body construction for corrosion resistance in compressed-air and gas service
- Stainless-steel spring for consistent set-pressure across the service interval
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
Applications
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
- Bypass relief on regulated air and gas circuits
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Industrial nitrogen, CO2 and inert-gas systems
