Description

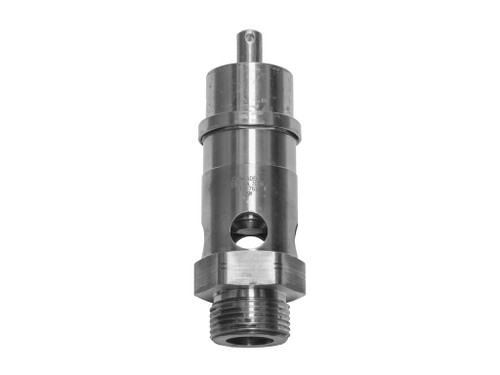

Conrader soft seat safety relief valves in 1-1/2" BSPP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/2" BSPP configuration. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 2384 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Brass body construction for corrosion resistance in compressed-air and gas service
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Compact body footprint for mounting on small receivers and pressure vessels
- Factory set, tested and tagged to the marked pressure setting
- Suitable for compressed air, inert gas and non-aggressive service media
Applications
- Air compressor receivers and air-line pressure vessels
- Bypass relief on regulated air and gas circuits
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
- Industrial nitrogen, CO2 and inert-gas systems
