Description

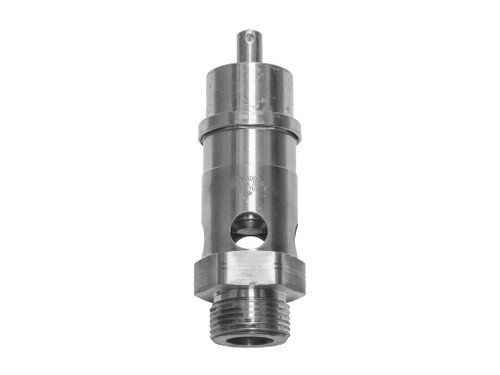

The Conrader SRV is a soft seat safety relief valve in 1-1/2" NPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 150 psi (1034 kPa / 10.3 bar), rated flow of 2498 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Suitable for compressed air, inert gas and non-aggressive service media
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Stainless-steel spring for consistent set-pressure across the service interval
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- Pressure vessels containing non-hazardous compressed gases
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Bypass relief on regulated air and gas circuits
- Industrial nitrogen, CO2 and inert-gas systems
- Air compressor receivers and air-line pressure vessels
