Description

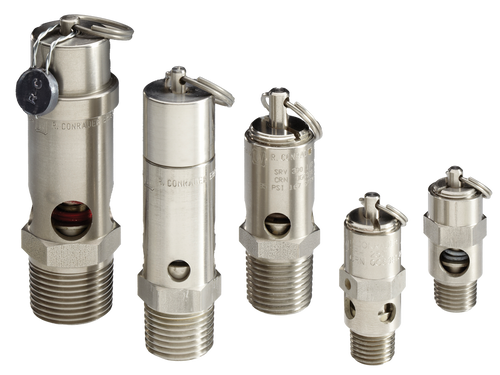

Conrader soft seat safety relief valves in 2" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 2" BSP configuration. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 3490 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Suitable for compressed air, inert gas and non-aggressive service media
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Stainless-steel spring for consistent set-pressure across the service interval
- Compact body footprint for mounting on small receivers and pressure vessels
- Factory set, tested and tagged to the marked pressure setting
Applications
- Pressure vessels containing non-hazardous compressed gases
- Industrial nitrogen, CO2 and inert-gas systems
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Bypass relief on regulated air and gas circuits
- Pneumatic equipment, air tools and workshop installations
