Description

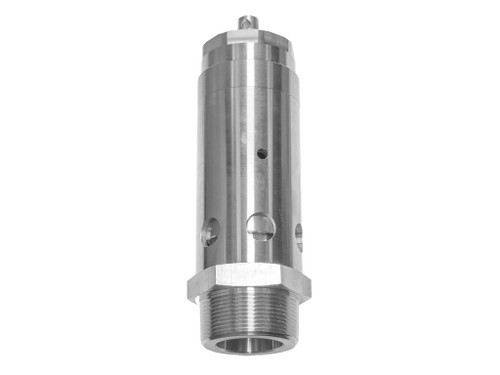

This Conrader soft seat safety relief valve in 2" NPT provides dependable overpressure protection on compressed-air systems, receivers and pressure vessels — supplied by Ultramax Systems for Australian industrial installations. Factory-set to 145 psi (1000 kPa / 10.0 bar), rated flow of 3676 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Supplied from Australian stock with batch certification on request and full recertification supported by the Ultramax Systems technical team.
Features
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Factory set, tested and tagged to the marked pressure setting
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Brass body construction for corrosion resistance in compressed-air and gas service
Applications
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
