Description

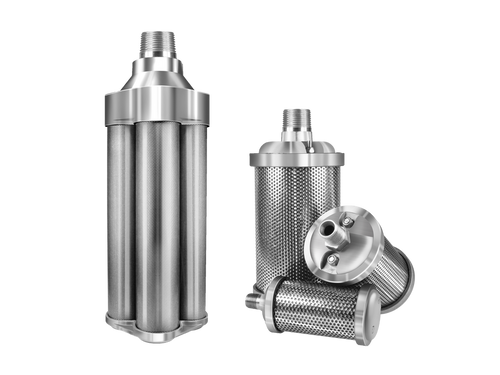

The Stainless Steel Series Air Exhaust Muffler is a stainless steel air exhaust muffler with a 1 1/2" BSP connection. Ultramax Systems supplies it rated for air exhaust at pressures above 150 psi, or 10.3 bar, so it suits pneumatic valves, cylinders and process equipment across everyday compressed air systems. The muffler fits onto the exhaust port and disperses discharging air through a 360 degree pattern, cutting exhaust noise by up to 85 percent while keeping back pressure low. A built in relief valve keeps exhaust flow steady if the element begins to clog, holding valve cycle times. Fitting one at each exhaust point lowers workplace noise and keeps dust out of the valve exhaust.
Features
- Stainless steel body for strength and corrosion resistance in washdown and hygienic plant
- 1 1/2" BSP connection
- Rated for air exhaust at pressures above 150 psi, or 10.3 bar
- Reduces exhaust noise by up to 85 percent over a 360 degree pattern
- Maintains efficient airflow with minimal back pressure
- Built in relief valve protects against back pressure if the element clogs
Applications
- Pneumatic valves and control systems
- Air cylinders and actuators
- Compressed air exhaust outlets
- Industrial automation and machinery
- Manufacturing and processing equipment
- Washdown, food, marine and corrosive plant
