Description

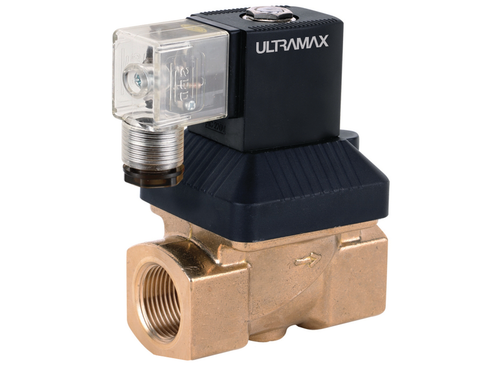

The Servo Assisted Diaphragm Valve with a brass body is a precision-engineered component designed for reliable flow control in various industrial applications. Operating on a normally open (N.O.) principle, this valve effectively isolates flow, regulates pressure, and controls the direction of media within systems. With a media temperature range of -10 to 80 degrees Celsius and compatible with pressures from 0.3 to 10 bar for both AC and DC, it is ideal for use in manufacturing, mining, water treatment, and compressed air systems. Its durable construction ensures corrosion resistance and leak prevention, enhancing system safety and operational efficiency, making it a vital choice for engineers, maintenance teams, and procurement officers in the industrial sector.
Features
- Constructed from durable brass for enhanced corrosion resistance and longevity.
- 1/4" size with a 10mm orifice for efficient flow control.
- Operates effectively within a media temperature range of -10 to 80 degrees Celsius.
- Designed for normally open (N.O.) function, allowing for immediate flow upon activation.
- Compatible with both AC and DC power supply, operating at 24V for versatile applications.
- Pressure rating of 0.3 to 10 Bar for reliable performance in various air and fluid systems.
- Servo-assisted diaphragm mechanism ensures precise control and responsiveness.
- Compact design facilitates easy installation in tight spaces without compromising performance.
Applications
- Used in fluid handling systems for precise control of liquid flow in manufacturing processes.
- Ideal for compressed air applications, ensuring reliable operation in pneumatic systems.
- Employed in water distribution networks to manage flow rates and pressure effectively.
- Utilised in gas pipelines for safe and efficient gas flow regulation.
- Commonly found in steam systems, providing reliable isolation and control of steam flow.
- Applied in process control environments to maintain consistent operational parameters.
- Serves as an equipment isolation valve, ensuring safety during maintenance operations.
- Effective in HVAC systems for regulating airflow and maintaining temperature control.
