Description
The WF811X covers the Walker A Series new sheet range in the Ultramax Systems alternative line. It is a Grade X general purpose coalescing element and removes oil aerosol, water and solid particulate from the air stream, rated at 1 µm. It sits as the first coalescing stage, ahead of a dryer or a carbon tower. Taking that load out early keeps the finer stage behind it working to its rated life. It matches the original on dimensional fit and drops into the existing housing without modification. Housings in the A105X1 family take this element. Held in Australian stock, it is supplied at a working budget price rather than OEM list.
This replacement filter element from Ultramax is a high-quality, Walker A Series-compatible alternative. Designed as an alternative to OEM part numbers E811X1 E811 X1 EWK811U EWK811U-FAPE APW811X5P1 OWAE811X1/MAl WALKER FILTRATION E811X1 APW811P1. It is engineered to suit housing models A105X1. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference
- A105X1
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| X | WF811XYou are here | General Purpose Coalescer | 1 µm |
| A | WF811A | Activated Carbon | 0.01 µm |

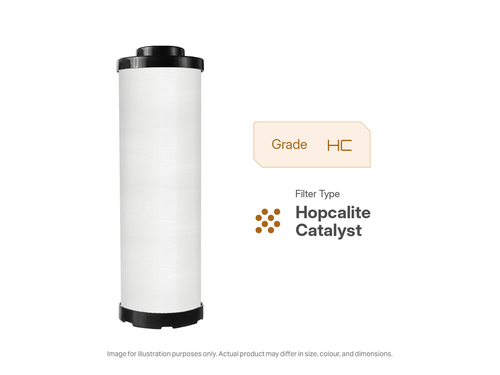

| HC | WF811HC | Hopcalite | — |
| P | WF811P | General Purpose Coalescer | 5 µm |
| Y | WF811Y | Oil Removal Coalescer | 0.01 µm |
Features
- Grade X media rated at 1 µm
- Removes oil aerosol, water and solid particulate from the air stream
- Dimensional match to the Walker A Series new sheet original, fits the existing housing without modification
- Suits A105X1 housings
- Held in Australian stock, not brought in to order
Applications
- Compressed air ahead of a refrigerated or adsorption dryer
- Pneumatic tooling and cylinder control
- Air feeding automated production equipment
- Ring main protection
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
