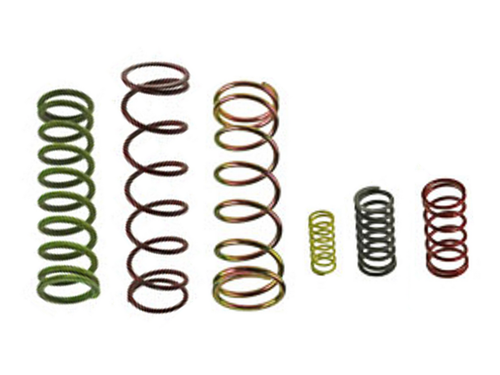

Stainless Steel Springs for 1" SRVs | 4455

Write a Review
SKU -
4455
$24.98
$24.98

Description

This 17-7 stainless-steel spring suits the Conrader brass-body soft-seat SRV safety relief valves used on compressed-air receivers and pressure vessels. Dimensioned to the 1" soft-seat valve body, supplied unset for technician set-pressure adjustment on the test bench. Other pressure set-points can be supplied to order, and batch certificates are available against the assembled valve on request. Supplied from Australian stock as the unset service-replacement spring; recertification of the assembled valve is handled in-house by the Ultramax Systems technical team.

Features

  • Pressure settings outside the standard range available to order
  • Supplied unset for technician set-pressure adjustment on the test bench
  • 17-7 stainless-steel spring construction for consistent set-pressure over service life
  • Dimensioned to the Conrader SRV brass valve body — installs in the genuine housing without modification
  • Service-replacement part used during recertification of Conrader SRV soft-seat valves

Applications

  • General industrial and workshop valve servicing
  • Replacement spring for safety relief valves on compressed-air receivers and pressure vessels
  • Re-rating a safety relief valve to a different set pressure
  • Servicing and recertification of safety relief valves
  • Maintenance of compressor and pneumatic system relief valves

Specifications

Width
9.000 (cm)
Height
2.500 (cm)
Depth
2.500 (cm)
Cap Material
ASTM B16 Brass
Colour
Green
Spring Material
17-7 Stainless Steel
Piston Material
ASTM B16 Brass
Pressure (psi)
61 - 104
Seal Material
Silicone (Standard) / Viton (on Request)
Seat Material
ASTM B16 Brass
Flow Rate (scfm)
583 - 920
SCFM
583 - 920
Pressure (kPa)
421 - 717
Notes
We can supply other pressure settings to order. All safety Valves can be recertified. Silicon Seal Max Temperature 120º C. Viton Seal Max Temperature 230º C
