Description

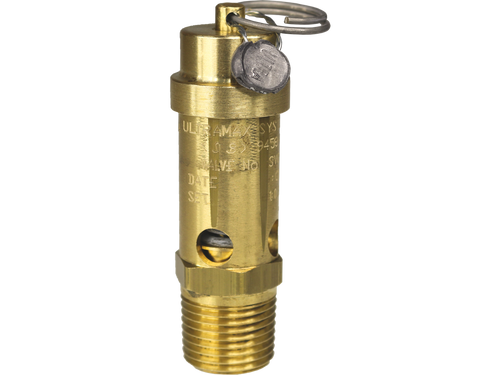

The Conrader SRV 530 is a soft seat safety relief valve in 1" BSP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Rated flow of 304 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Factory set, tested and tagged to the marked pressure setting
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Brass body construction for corrosion resistance in compressed-air and gas service
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
