Description

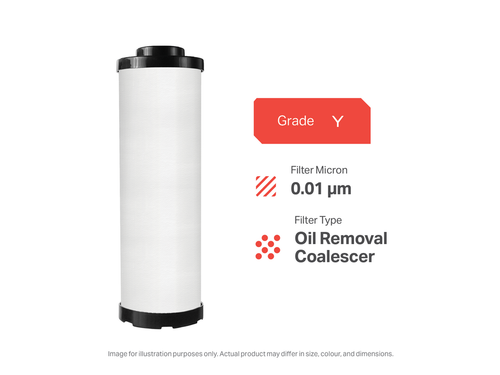

Within the Chicago Pneumatic New range, the CH685Y is the Ultramax Systems replacement element. As a Grade Y high efficiency oil removal coalescing element it strips the fine oil aerosol and water carryover a general purpose stage leaves behind, rated at 0.01 µm. It sits directly downstream of a Grade X stage. It carries the fine load a general purpose element is not built to hold. Dimensions follow the original, so it installs into the existing housing without modification. C685 housings accept this element. Stock is held in Australia and supplied at a working budget price against going direct to the OEM.
This replacement filter element from Ultramax is a high-quality, Chicago Pneumatic New-compatible alternative. Designed as an alternative to OEM part numbers 2258290129 | 2258293207 | 8102853127 | 8102826602 | CPC405-685F. It is engineered to suit housing models C685 | 8-C-D | 8-D-G | 8C/D | 8CD. Manufactured to strict quality standards, it delivers reliable system protection at a competitive price.
Cross Reference Table
| Chicago Pneumatic New | 2258290129225829320781028531278102826602CPC405-685FECPG405HECPG685HOCP 685 C/XS1010100100527 |
|---|
- C685
- 8-C-D
- 8-D-G
- 8C/D
- 8CD
- 8-C-G
- 8-C-G 1 1/2
- 8C/G
- 8CG
- C405/685
Other Grades for This System
| Grade | Part number | Filtration | Micron |
|---|---|---|---|
| Y | CH685YYou are here | Oil Removal Coalescer | 0.01 µm |
| Y | CH685A | Oil Removal Coalescer | 0.01 µm |
| P | CH685P | General Purpose Coalescer | 3 µm |
| X | CH685X | General Purpose Coalescer | 1 µm |
Features
- Grade Y media rated at 0.01 µm
- Strips the fine oil aerosol and water carryover a general purpose stage leaves behind
- Dimensional match to the Chicago Pneumatic New original, fits the existing housing without modification
- Suits C685 and 4 further housing models
- Held in Australian stock, not brought in to order
Applications
- Paint and powder coating lines
- Instrument air and control circuits
- Electronics assembly and test
- Pre-filtration ahead of an activated carbon stage
All brand names, trademarks and part numbers shown on this page remain the property of their respective owners and appear for identification purposes only. Ultramax Systems is not affiliated with, endorsed by, or a licensee of any manufacturer listed. Cross references indicate dimensional and performance equivalence, not original equipment supply. Please confirm the fitment against your housing before you order.
WarrantyEvery element is warranted to meet the Ultramax standard specification when it reaches you. If one does not, we will replace it, supply an equivalent, repair it, or cover the cost of replacing it. Tell us within 14 days of purchase to arrange a return. A restocking fee applies, and special order items cannot be returned. Our terms and conditions set out the detail.
