Description

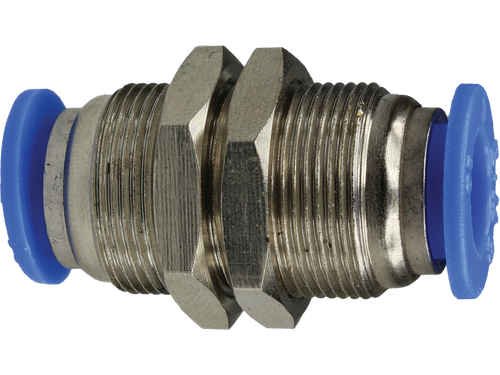

The Push-in Bulkhead Union is an essential component for any pneumatic system, designed to efficiently carry compressed air or vacuum between various pneumatic components. This fitting utilises a push-in collet locking mechanism, ensuring a secure connection with an O-ring seal that guarantees leak-free performance. Compatible with a wide range of equipment including compressors, FRL units, solenoid valves, cylinders, actuators, and pneumatic manifolds, this union is engineered to operate effectively under pressures of up to 10 bar and within a temperature range of 0 ˚C to 60 ˚C. The tool-free assembly feature allows for rapid installation, significantly reducing downtime and installation time, while also enabling easy reconfiguration of pneumatic circuits as needed. With its robust design and reliable performance, the Push-in Bulkhead Union is an ideal choice for enhancing the efficiency and flexibility of your pneumatic systems.
Features
- Constructed from durable polyurethane or nylon for enhanced flexibility and resistance to kinking.
- Features a push-in collet release design for quick and easy installation and disconnection.
- O-ring sealed connections ensure leak-free performance under various operating conditions.
- Available in a comprehensive range of metric and imperial sizes to suit diverse applications.
- Compatible with both BSP and NPT thread options for versatile integration into existing systems.
- Offers kink-resistant tubing to maintain optimal flow and prevent damage during use.
- Available in food-grade and standard variants to meet specific industry requirements.
- Designed to maintain consistent pressure ratings up to 10 Bar for reliable operation.
Applications
- Ideal for factory automation systems requiring reliable pneumatic connections under pressure up to 10 Bar.
- Utilised in pneumatic control panels for efficient air distribution and management in industrial environments.
- Compatible with robotics applications, ensuring secure and leak-free connections for actuators and sensors.
- Essential component in packaging machinery, facilitating smooth operation of pneumatic cylinders and drives.
- Designed for food and beverage lines, meeting hygiene standards while providing robust air supply solutions.
- Effective in automotive workshops for powering pneumatic tools and equipment with consistent air pressure.
- Supports industrial assembly cells by enabling quick and easy connections for pneumatic systems.
- Suitable for laboratory air systems, ensuring precise control and delivery of compressed air for various applications.
