Description

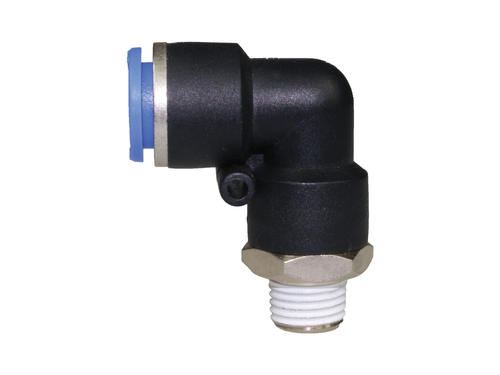

The Push-In Elbow is a high-performance pneumatic fitting designed to facilitate the efficient transfer of compressed air or vacuum between various pneumatic components, ensuring seamless connectivity with a range of systems including compressors, FRL units, solenoid valves, cylinders, actuators, and pneumatic manifolds. Engineered for optimal functionality, this fitting employs a push-in collet locking mechanism combined with an O-ring seal, providing a robust and reliable connection that guarantees consistent leak-free joints. With a pressure rating of up to 10 bar and a temperature range of 0 ˚C to 60 ˚C, the Push-In Elbow is suitable for both air and water applications, making it a versatile choice for industrial environments. The tool-free assembly process significantly reduces installation time, allowing for quick and easy reconfiguration of pneumatic circuits, which enhances operational efficiency. This fitting not only streamlines the assembly process but also ensures long-lasting performance, making it an essential component for any pneumatic system.
Features
- Constructed from durable polyurethane or nylon materials for enhanced flexibility and longevity.
- Features a push-in collet release design for quick and easy installation and disconnection.
- O-ring sealed connections ensure leak-free performance under various operating conditions.
- Available in a comprehensive range of metric and imperial sizes to accommodate diverse applications.
- Compatible with both BSP and NPT thread options for versatile integration into existing systems.
- Kink-resistant tubing design minimises the risk of damage and maintains consistent airflow.
- Offered in food-grade and standard variants to meet specific industry requirements.
- Designed to maintain consistent pressure ratings up to 10 bar for reliable operation.
Applications
- Optimised for factory automation systems, facilitating efficient air distribution in complex machinery layouts.
- Ideal for pneumatic control panels, ensuring reliable connections for pressure regulation and control.
- Utilised in robotics applications, providing flexible routing of compressed air for actuators and grippers.
- Essential in packaging machinery, enabling quick and secure connections for pneumatic cylinders and drives.
- Designed for food and beverage lines, meeting hygiene standards while maintaining high-pressure performance.
- Perfect for automotive workshops, allowing for streamlined air supply to tools and equipment in confined spaces.
- Critical in industrial assembly cells, supporting the integration of pneumatic systems for enhanced productivity.
- Applicable in laboratory air systems, ensuring precise control of air flow for sensitive experiments and processes.
