Description

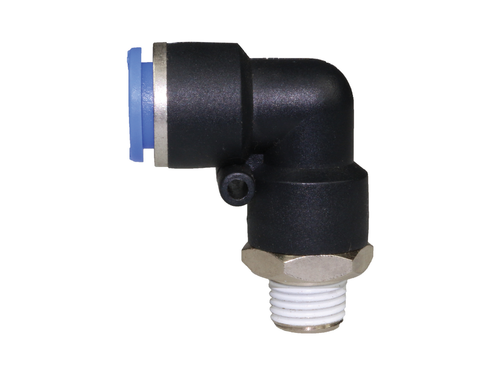

The Push-In Elbow is a high-performance pneumatic fitting designed to facilitate the efficient transfer of compressed air or vacuum between various pneumatic components, ensuring seamless connectivity with a range of fittings through its innovative push-in collet locking mechanism. This fitting features a robust O-ring seal that guarantees a consistent, leak-free joint, making it an ideal choice for applications involving compressors, FRL units, solenoid valves, cylinders, actuators, and pneumatic manifolds. With a pressure rating of up to 10 bar and a temperature range of 0 ˚C to 60 ˚C, the Push-In Elbow is engineered for durability and reliability in demanding industrial environments. Its tool-free assembly allows for rapid installation and reconfiguration of pneumatic circuits, significantly reducing installation time while enhancing operational efficiency. The Push-In Elbow not only simplifies the assembly process but also ensures that your pneumatic systems maintain optimal performance with minimal downtime, making it an essential component for any professional looking to streamline their pneumatic operations.
Features
- Constructed from durable polyurethane or nylon for enhanced flexibility and resistance to kinking.
- Features a push-in collet release design for quick and easy installation and disconnection.
- O-ring sealed connections ensure leak-free performance under various operating conditions.
- Available in a comprehensive range of metric and imperial sizes to suit diverse applications.
- Compatible with both BSP and NPT thread options for versatile integration into existing systems.
- Offers kink-resistant tubing to maintain flow integrity and reduce downtime during operation.
- Available in food-grade and standard variants to meet specific industry requirements.
- Designed to maintain consistent pressure ratings up to 10 bar for reliable performance.
Applications
- Optimised for factory automation systems, facilitating efficient air distribution in complex machinery layouts.
- Ideal for pneumatic control panels, ensuring reliable connections for pressure regulation and control.
- Enhances robotics applications by providing flexible routing of compressed air to actuators and sensors.
- Utilised in packaging machinery to maintain consistent operation and reduce downtime through quick assembly.
- Designed for food and beverage lines, meeting hygiene standards while ensuring robust performance under pressure.
- Perfect for automotive workshops, enabling seamless integration of pneumatic tools and equipment.
- Supports industrial assembly cells by allowing easy adjustments and modifications to air supply configurations.
- Essential for laboratory air systems, providing precise control and reliable connections for various pneumatic applications.
