Description

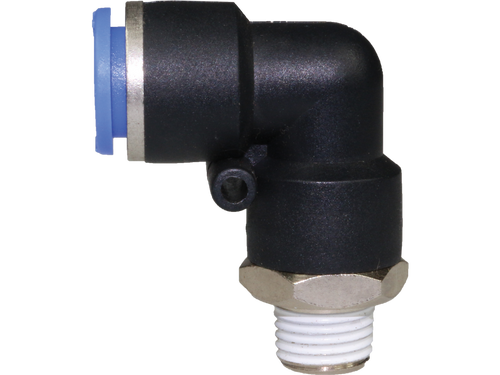

The Push-In Male Threaded Elbow is an essential component for any pneumatic system, designed to efficiently carry compressed air or vacuum between various pneumatic components. This fitting features a robust push-in collet locking mechanism that ensures a secure connection with an O-ring seal, providing a reliable and leak-free joint. Compatible with a wide range of equipment including compressors, FRL units, solenoid valves, cylinders, actuators, and pneumatic manifolds, this elbow fitting is engineered to operate under pressures of up to 10 bar and within a temperature range of 0 ˚C to 60 ˚C, making it suitable for diverse industrial applications. The tool-free assembly allows for rapid installation and reconfiguration of pneumatic circuits, significantly reducing installation time while maintaining consistent performance. With its ability to facilitate quick adjustments and ensure dependable connections, the Push-In Male Threaded Elbow is an ideal choice for enhancing the efficiency and flexibility of your pneumatic systems.
Features
- Constructed from durable polyurethane or nylon for enhanced flexibility and longevity.
- Features a push-in collet release design for easy installation and disconnection.
- O-ring sealed connections ensure leak-free performance under various operating conditions.
- Available in a comprehensive range of metric and imperial sizes to suit diverse applications.
- Compatible with both BSP and NPT thread options for versatile integration into existing systems.
- Kink-resistant tubing design minimises the risk of damage and maintains optimal flow.
- Offered in food-grade and standard variants to meet specific industry requirements.
- Consistent pressure ratings up to 10 bar for reliable operation in air and water applications.
Applications
- Optimised for factory automation systems, facilitating efficient air distribution in complex machinery setups.
- Ideal for pneumatic control panels, ensuring reliable connections for pressure regulation and control.
- Enhances robotic applications by providing flexible air routing in confined spaces, improving mobility and performance.
- Suitable for packaging machinery, enabling quick and secure connections for pneumatic actuators and cylinders.
- Designed for food and beverage lines, meeting hygiene standards while maintaining consistent air flow for processing equipment.
- Perfect for automotive workshops, allowing for easy integration into pneumatic tools and equipment for enhanced productivity.
- Utilised in industrial assembly cells, streamlining air supply to various tools and machinery for efficient operations.
- Applicable in laboratory air systems, ensuring precise air delivery for sensitive equipment and experiments.
