Description

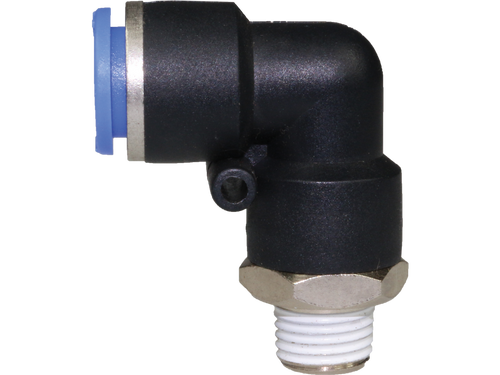

The Push-In Male Threaded Elbow is an essential component for any pneumatic system, designed to efficiently carry compressed air or vacuum between various pneumatic components. This fitting features a robust push-in collet locking mechanism that ensures a secure connection with an O-ring seal, providing a reliable and leak-free joint. Compatible with a wide range of equipment including compressors, FRL units, solenoid valves, cylinders, actuators, and pneumatic manifolds, this elbow fitting is engineered to operate under pressures of up to 10 bar and within a temperature range of 0 ˚C to 60 ˚C, making it suitable for diverse industrial applications. The tool-free assembly process allows for rapid installation and reconfiguration of pneumatic circuits, significantly reducing installation time while maintaining consistent performance. With its ability to facilitate quick adjustments and ensure tight seals, the Push-In Male Threaded Elbow is an ideal choice for enhancing the efficiency and reliability of your pneumatic systems.
Features
- Constructed from durable polyurethane or nylon materials for enhanced flexibility and longevity.
- Features a push-in collet release design for quick and easy installation and disconnection.
- O-ring sealed connections ensure leak-free performance under various operating conditions.
- Available in a comprehensive range of metric and imperial sizes to suit diverse applications.
- Compatible with both BSP and NPT thread options for versatile integration into existing systems.
- Kink-resistant tubing design minimises the risk of damage and maintains optimal flow characteristics.
- Offered in food-grade and standard variants to meet specific industry requirements.
- Designed to maintain consistent pressure ratings up to 10 bar for reliable operation.
Applications
- Optimised for factory automation systems, facilitating efficient air distribution in complex machinery layouts.
- Ideal for pneumatic control panels, ensuring secure connections for reliable pressure management.
- Enhances robotic applications by providing flexible air routing in confined spaces, improving mobility and performance.
- Utilised in packaging machinery to maintain consistent air flow for precise operation and product handling.
- Designed for food and beverage lines, meeting hygiene standards while ensuring robust air supply for processing equipment.
- Perfect for automotive workshops, enabling quick and easy connections for pneumatic tools and equipment.
- Supports industrial assembly cells by allowing rapid adjustments in air supply configurations for various tasks.
- Essential for laboratory air systems, providing reliable connections for pneumatic instruments and equipment.
