Description

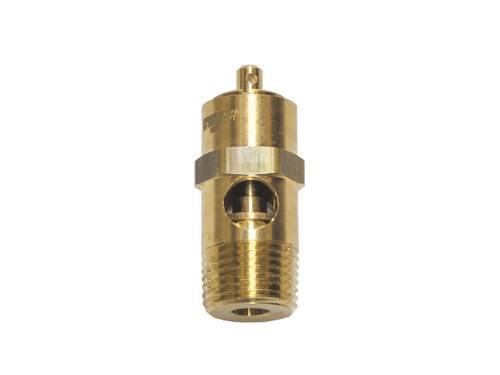

Conrader hard seat safety relief valves in 1/4" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1/4" BSP configuration. Factory-set to 80 psi (551 kPa / 5.5 bar), rated flow of 73 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Robust internal trim for repeated pressure-relief cycles without sealing degradation
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, gas and steam service within rated temperature limits
- AS-coded and ASME-coded variants available across the range
- Factory set, tested and tagged to the marked pressure setting
Applications
- Intercoolers and aftercoolers on compressed-air systems
- Industrial process plants on compressed-air, gas and steam duty
- Heated pressure vessels and process tanks within rated temperature
- Industrial gas distribution lines requiring metal-seat reliability
