Description

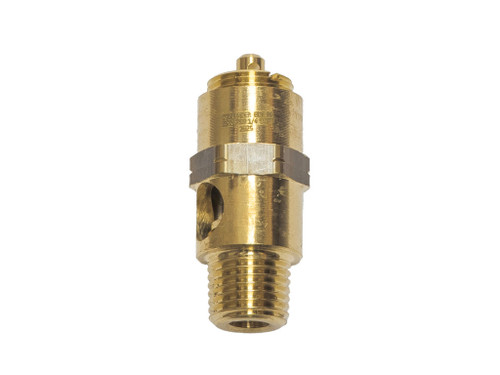

The Conrader SRH 250 is a hard seat safety relief valve in 1/4" BSP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 125 psi (861 kPa / 8.6 bar), rated flow of 109 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Hard seat design suited to elevated temperatures and aggressive service media
- Metric and BSP threaded body configurations for compressor and pressure-vessel mounting
- Suitable for compressed air, gas and steam service within rated temperature limits
- Brass body construction with metal-to-metal hard seat for demanding service
Applications
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
