Description

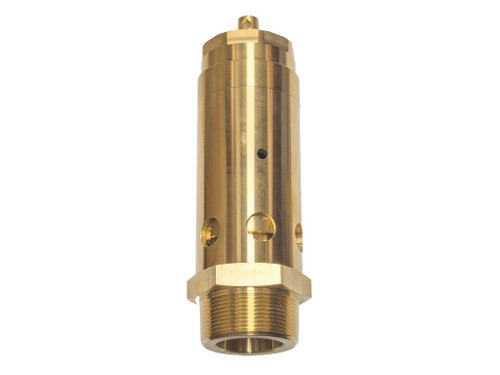

The Conrader SRV is a soft seat safety relief valve in 1-1/2" NPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 145 psi (1000 kPa / 10.0 bar), rated flow of 2459 scfm, with an astm b16 brass seat, AS-coded for Australian-Standards pressure-vessel service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Stainless-steel spring for consistent set-pressure across the service interval
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Suitable for compressed air, inert gas and non-aggressive service media
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
Applications
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
