Description

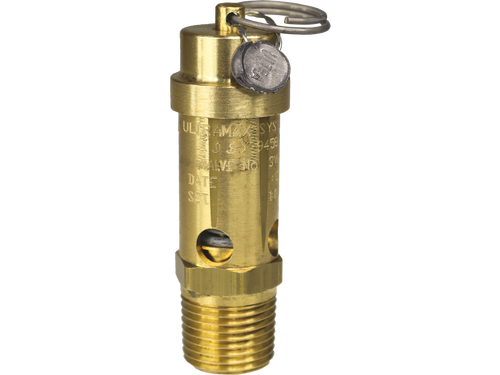

Conrader soft seat safety relief valves in 1-1/4" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/4" BSP configuration. Factory-set to 116 psi (800 kPa / 8.0 bar), rated flow of 1006 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Brass body construction for corrosion resistance in compressed-air and gas service
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Factory set, tested and tagged to the marked pressure setting
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, inert gas and non-aggressive service media
Applications
- Air compressor receivers and air-line pressure vessels
- Pneumatic equipment, air tools and workshop installations
- Industrial nitrogen, CO2 and inert-gas systems
- Pressure vessels containing non-hazardous compressed gases
- Bypass relief on regulated air and gas circuits
