Description

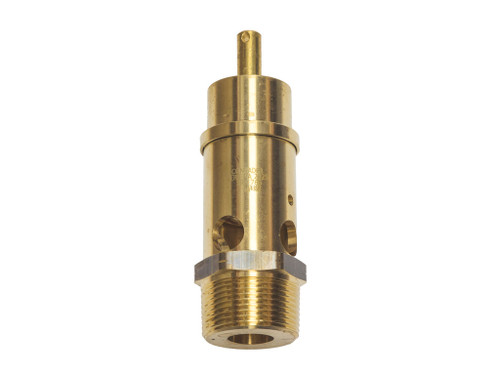

This Conrader soft seat safety relief valve in 1-1/4" BSPP provides dependable overpressure protection on compressed-air systems, receivers and pressure vessels — supplied by Ultramax Systems for Australian industrial installations. Factory-set to 123 psi (850 kPa / 8.5 bar), rated flow of 1047 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Supplied from Australian stock with batch certification on request and full recertification supported by the Ultramax Systems technical team.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, inert gas and non-aggressive service media
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Factory set, tested and tagged to the marked pressure setting
Applications
- Pressure vessels containing non-hazardous compressed gases
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Industrial nitrogen, CO2 and inert-gas systems
- Bypass relief on regulated air and gas circuits
- Compressed-air distribution networks and pressure regulators
