Description

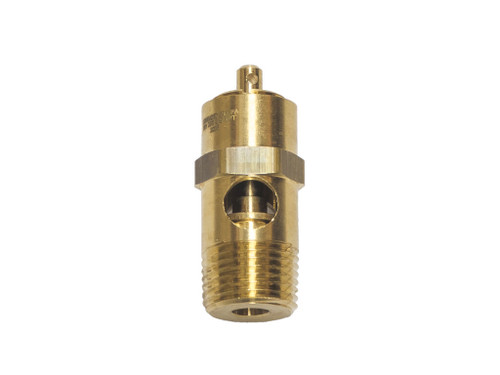

The Conrader SRV 250 is a soft seat safety relief valve in 1/8" BSPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 80 psi (551 kPa / 5.5 bar), rated flow of 76 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Brass body construction for corrosion resistance in compressed-air and gas service
- Factory set, tested and tagged to the marked pressure setting
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- Compressed-air distribution networks and pressure regulators
- Air compressor receivers and air-line pressure vessels
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
- Industrial nitrogen, CO2 and inert-gas systems
